Congratulation Dirtbike59 for being the May 2009 COTM winner
1974 DeTomaso Pantera "L"
1974 DeTomaso Pantera "L"
The Engine
NOS Ford Motorsport 351C NASCAR Racing block Casting #XE192540
GF casting mark on top of block @ bellhousing
4MA Crankshaft .010 under
Std D0AE Rods , New ARP Bolts
TRW L2416F Forged Std Bore Pistons .9.5:1 compression w/speedpro rings.
Comp Cams 280 series 32-225-4 cam 230 dur @.050 , .530 lift , 110 deg lobe separation
Comp Cams Hyd. lifters
Trick Flow 1 piece 3/8 pushrods w/ new guide plates
Crane Energizer roller rockers 1.7 ratio
D1AE Closed Chamber 4V heads w/pocket porting.
2.19 int and 1.7 exh? currently 64.6cc
Cloyes Double Roller timing chain
Milondon Hi Flow Alum Pump w hi flow 180 deg stat.
Hi-volume oil pump, std pump shaft, yea I know I should get a hardened one.
std pan w' windage tray and baffles. Using 6 qts
Mallory Unilite distributor w/ mallory promaster coil.
Timing at 10 initial , max advance 32 at 2-2500 rpm ( mechanical advance)
Accel 300+ wires
Weiand X-celerator single plane intake 4V #7517?

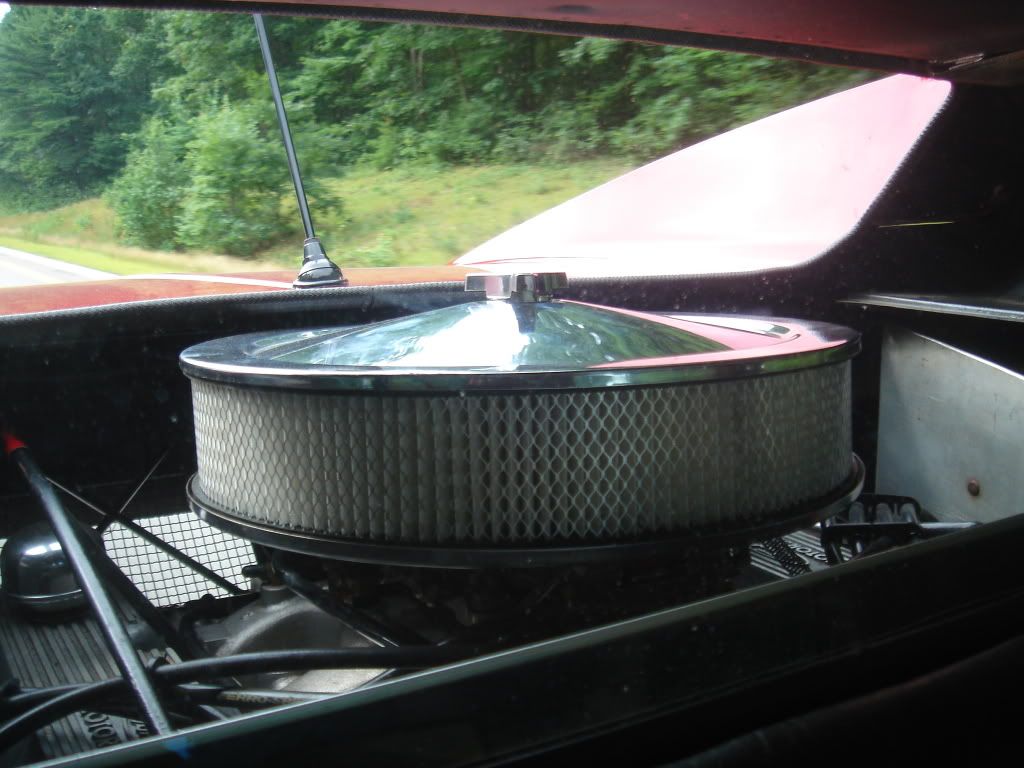

Holley 700 cfm 4150 series double pumper w\mech secondaries, choke plate removed.
Rejetted up on primary and secondary, also larger accel pump nozzle on primary
Holley electric Blue 110gph w regulator set at 7-8 psi. 3/8 line.
2 into 2 into 1 headers , 2'' primary tubes w\2 1/2 ' collectors. ceramic coated.
Main rotating assy balanced w/ flywheel and centerforce clutch.
1974 DeTomaso Pantera "L"
1974 DeTomaso Pantera "L"
The Engine
NOS Ford Motorsport 351C NASCAR Racing block Casting #XE192540
GF casting mark on top of block @ bellhousing
4MA Crankshaft .010 under
Std D0AE Rods , New ARP Bolts
TRW L2416F Forged Std Bore Pistons .9.5:1 compression w/speedpro rings.
Comp Cams 280 series 32-225-4 cam 230 dur @.050 , .530 lift , 110 deg lobe separation
Comp Cams Hyd. lifters
Trick Flow 1 piece 3/8 pushrods w/ new guide plates
Crane Energizer roller rockers 1.7 ratio
D1AE Closed Chamber 4V heads w/pocket porting.
2.19 int and 1.7 exh? currently 64.6cc
Cloyes Double Roller timing chain
Milondon Hi Flow Alum Pump w hi flow 180 deg stat.
Hi-volume oil pump, std pump shaft, yea I know I should get a hardened one.
std pan w' windage tray and baffles. Using 6 qts
Mallory Unilite distributor w/ mallory promaster coil.
Timing at 10 initial , max advance 32 at 2-2500 rpm ( mechanical advance)
Accel 300+ wires
Weiand X-celerator single plane intake 4V #7517?
Holley 700 cfm 4150 series double pumper w\mech secondaries, choke plate removed.
Rejetted up on primary and secondary, also larger accel pump nozzle on primary
Holley electric Blue 110gph w regulator set at 7-8 psi. 3/8 line.
2 into 2 into 1 headers , 2'' primary tubes w\2 1/2 ' collectors. ceramic coated.
Main rotating assy balanced w/ flywheel and centerforce clutch.
Anti-Speedbump Society
We had a Pantera in the shop about a year ago, pretty fun car!
